FMC+DB25CLK
Function Description
FMC plus interface to DB25 signal control module (FMC+DB25CLK) is an FMC+ communication daughter board. Through the FMC+ connection standard interface, it can transmit and receive real-time signals from the main system to achieve communication with external systems.

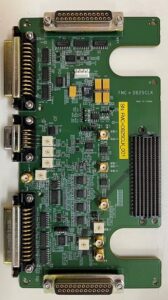

The appearance of this conversion module is as shown in the picture below. The upper set of FMC+ connection signals is used to transmit and receive signals with the FPGA based carrier board. The signals are transmitted to the designated connector through the built-in signal conversion processing circuit on the board. This module includes PLL clk clock terminal SMA inputs, Gating/Blanking clock single-ended SMA inputs, DB25-Decoy single-ended signal output/input, DB25-Decoy differential signal output/input, DB25-RCIM differential signal output/input, DB25-SYNC differential signal input , DB25-ADC differential signal input, DB9 single-ended signal output (T0/ACP/ARP) and Video trace signal single-ended SMA output.
Specifications
| DB9 Signal Output | |
| Signal Name | T0/ACP/ARP，Single-ended |
| Output Connection Type | DB9 Connector， |
| DB25 Signal Output/Input | |
| Interface | Decoy Single-ended Signal Output/Input、Decoy Differential Signal Output/Input、RCIM Differential Signal Output/Input、SYNC Differential Signal Input |
| Output/Input Connection Type | DB25 Connector |
| SMA Input | |
| Interface Signal | PLL clk pulse、Gating/Blanking pulse |
| Input Connection Type | SMA Connector |
| Resolution |
|
| External DC Power | |
| Connection Type | One DC plug |
| Supply Voltage | DC12V± 1.0V |
| Environment Condition | |
| Operating Temperature | -40 ℃ ~ +60 ℃ |
| Storage Temperature | -40 ℃ ~ +85 ℃ |
| Mechanical Information | |
| Dimensions | 98.5±10mm (W) x 189±12mm (L) x 13.99±5mm (H) |
Ordering Information
| PN | Description |
| FMC+DB25CLK | FMC plus interface to DB25 signal control module |
